API

The following subroutines can be called by programs that are linked against ecTrans. Here we describe in detail their signatures.

General notes

Variable names

ecTrans in principle follows the coding standard and conventions outlined in the IFS Documentation - Part VI: Technical and Computational Procedures section 1.5. Following these standards, all variable names must begin with a one- or two-character prefix denoting their scope (module level, dummy argument, local variables, loop index, or parameter) and type. These are outlined in Table 1.2. Dummy variables have the following prefixes:

• K - integer
• P - real (single or double precision)
• LD - logical
• CD - character
• YD - derived type

KIND parameters

As with the IFS, integer and real variables in ecTrans always have an explicit KIND specification. These are defined in the PARKIND1 module which is part of the Fiat library (a dependency of ecTrans). To understand the subroutines described here, only two must be considered:

• INTEGER, PARAMETER :: JPIM = SELECTED_INT_KIND(9) (i.e. 4-byte integer)
• INTEGER, PARAMETER :: JPRD = SELECTED_REAL_KIND(13,300) (i.e. 8-byte float)

List of subroutines

• SETUP_TRANS0

• SETUP_TRANS

• TRANS_INQ

• DIR_TRANS

• INV_TRANS

• SPECNORM

• GPNORM_TRANS

• GPNORM_TRANSAD

• GPNORM_TRANSTL

• DIST_GRID

• GATH_GRID

• DIST_SPEC

• GATH_SPEC

• GET_CURRENT

• INI_SPEC_DIST

• TRANS_PNM

• VORDIV_TO_UV

• DIR_TRANSAD

• INV_TRANSAD

• TRANS_RELEASE

• TRANS_END

SETUP_TRANS0

Signature

SUBROUTINE SETUP_TRANS0(KOUT, KERR, KPRINTLEV, KMAX_RESOL, KPROMATR, KPRGPNS, KPRGPEW, KPRTRW, &
  &                     LDMPOFF, LDSYNC_TRANS, KTRANS_SYNC_LEVEL, LDEQ_REGIONS, K_REGIONS_NS, &
  &                     K_REGIONS_EW, K_REGIONS, PRAD, LDALLOPERM, KOPT_MEMORY_TR)

Purpose

This subroutine initialises all resolution-agnostic aspects of the ecTrans library. It must be called before any other ecTrans subroutines.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KOUT
  Fortran unit number for listing output.
  Default: 6 (i.e. STDOUT)
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KERR
  Unit number for error messages.
  Default: 0 (i.e. STDERR)
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPRINTLEV
  Verbosity of standard output (0: output disabled, 1: normal, 2: debug).
  Default: 0
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KMAX_RESOL
  Maximum number of different resolutions for which spectral transforms will be performed. This is required in advance so ecTrans knows how to correctly size the work arrays.
  Default: 1
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMATR
  Batch size for splitting of vertical field set. This allows one to transform one batch of vertical levels at a time rather than transforming all in one go. A value of 0 disables this feature.
  Default: 0
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPRGPNS
  Splitting level in North-South direction in grid-point space.
  Default: 1
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPRGPEW
  Splitting level in East-West direction in grid-point space.
  Default: 1
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPRTRW
  Splitting level in wave direction in spectral space.
  Default: 1
• LOGICAL, OPTIONAL, INTENT(IN) :: LDMPOFF
  Switch off message passing.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDSYNC_TRANS
  Switch to activate barriers in M->L and L->M transposition routines.
  Default: .FALSE.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KTRANS_SYNC_LEVEL
  Control parameter for synchronization and blocking in communication routines.
  Default: 0
• LOGICAL, OPTIONAL, INTENT(IN) :: LDEQ_REGIONS
  Enable EQ_REGIONS partitioning mode.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDALLOPERM
  Allocate certain arrays permanently.
  Default: .FALSE.
• REAL(KIND=JPRD), OPTIONAL, INTENT(IN) :: PRAD
  Radius of the planet (Earth) in metres.
  Default: 6371229.0
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KOPT_MEMORY_TR
  Memory strategy for gridpoint transpositions (0: heap, 1: stack).
  Default: 0

OPTIONAL, INTENT(OUT) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: K_REGIONS(:)
  Number of regions returned by EQ_REGIONS algorithm.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: K_REGIONS_NS
  Maximum number of North-South partitions, as determined by EQ_REGIONS algorithm.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: K_REGIONS_EW
  Maximum number of East-West partitions, as determined by EQ_REGIONS algorithm.

SETUP_TRANS

Signature

SUBROUTINE SETUP_TRANS(KSMAX, KDGL, KDLON, KLOEN, LDSPLIT, PSTRET, KTMAX, KRESOL, PWEIGHT, &
  &                    LDGRIDONLY, LDUSERPNM, LDKEEPRPNM, LDUSEFLT, LDSPSETUPONLY, LDPNMONLY, &
  &                    LDUSEFFTW, LD_ALL_FFTW, LDLL, LDSHIFTLL, CDIO_LEGPOL, CDLEGPOLFNAME, &
  &                    KLEGPOLPTR, KLEGPOLPTR_LEN)

Purpose

This subroutine establishes the environment for performing a spectral transform. Each call to this subroutine creates work arrays for a certain resolution. One can do this for NMAX_RESOL different resolutions (internal parameter corresponding to KMAX_RESOL argument of SETUP_TRANS0). One must call SETUP_TRANS0 before calling this subroutine for the first time.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KSMAX
  Spectral truncation to perform the transform up to.
• INTEGER(KIND=JPIM), INTENT(IN) :: KDGL
  The number of Gaussian latitudes in grid point space.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KDLON
  Maximum number of points on any latitude (usually the latitude nearest to the Equator). If not provided, it will take the value of 2 * KDGL, unless LDLL is .TRUE. in which case it will take the value of 2 * KDGL + 2, unless KLOEN is provided in which case it will take the value of MAXVAL(KLOEN).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KLOEN(:)
  An array giving the number of points on each Gaussian latitude. If this is not provided it will be assumed that a full Gaussian grid is used in grid point space, for which every latitude will have KDLON points.
  Dimensions: (KDGL)
• LOGICAL, OPTIONAL, INTENT(IN) :: LDSPLIT
  Split latitude in grid point space.
  Default: .FALSE.
• REAL(KIND=JPRD), OPTIONAL, INTENT(IN) :: PSTRET
  Stretching factor for when the Legendre polynomials are computed on the stretched sphere.
  Default: 1.0
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KTMAX
  Spectral truncation to be applied for tendencies.
  Default: KSMAX
• REAL(KIND=JPRD), OPTIONAL, INTENT(IN) :: PWEIGHT(:)
  The weight per grid-point (for a weighted distribution). If this argument is not provided, a weighted distribution will not be used.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDGRIDONLY
  Only provide grid point space results.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDUSEFLT
  Use the fast Legendre transform algorithm.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LD_ALL_FFTW
  Fourier transform fields in one call of FFTW, rather than field by field.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDUSERPNM
  Use the Belusov algorithm to compute the Legendre polynomials.
  Default: .TRUE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDKEEPRPNM
  Store Legendre Polynomials instead of recomputing (only applicable when using the fast Legendre transform, otherwise these are always stored).
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDSPSETUPONLY
  Only create distributed spectral setup.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDPNMONLY
  Compute the Legendre polynomials only, not the FFTs.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDLL
  Setup second set of input/output latitudes.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDSHIFTLL
  Shift output lon/lat data by 0.5 * dx and 0.5 * dy.
  Default: .FALSE.
• CHARACTER(LEN=*), OPTIONAL, INTENT(IN) :: CDIO_LEGPOL
  String config argument to determine several options relating to I/O operations relevant to the Legendre polynomials. If 'readf' is passed, Legendre polynomials will be read from the file given to CDLEGPOLFNAME. If 'writef' is passed, Legendre polynomials will be written to the file given to CDLEGPOLFNAME. If 'membuf' is passed, Legendre polynomials will be read from shared memory.
• CHARACTER(LEN=*), OPTIONAL, INTENT(IN) :: CDLEGPOLFNAME
  Filename from which to read or to which to write the Legendre polynomials. See CDIO_LEGPOL.
• TYPE(C_PTR), OPTIONAL, INTENT(IN) :: KLEGPOLPTR
  Pointer to memory segment containing Legendre polynomials. See CDIO_LEGPOL.
• INTEGER(C_SIZE_T), OPTIONAL, INTENT(IN) :: KLEGPOLPTR_LEN
  Length of memory segment containing Legendre polynomials. See CDIO_LEGPOL.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDUSEFFTW

OPTIONAL, INTENT(OUT) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KRESOL
  A unique integer identifier to act as a handle for the work arrays corresponding to the provided transform resolution.

TRANS_INQ

Signature

SUBROUTINE TRANS_INQ(KRESOL, KSPEC, KSPEC2, KSPEC2G, KSPEC2MX, KNUMP, KGPTOT, KGPTOTG, KGPTOTMX, &
  &                  KGPTOTL, KMYMS, KASM0, KUMPP, KPOSSP, KPTRMS, KALLMS, KDIM0G, KFRSTLAT, &
  &                  KLSTLAT, KFRSTLOFF, KPTRLAT, KPTRFRSTLAT, KPTRLSTLAT, KPTRFLOFF, KSTA, KONL, &
  &                  KULTPP, KPTRLS, KNMENG, KPRTRW, KMYSETW, KMYSETV, KMY_REGION_NS, &
  &                  KMY_REGION_EW, LDSPLITLAT, KSMAX, PLAPIN, KNVALUE, KDEF_RESOL, LDLAM, PMU, &
  &                  PGW, PRPNM, KLEI3, KSPOLEGL, KPMS, KDGLU)

Purpose

This subroutine allows one to obtain information on the transform configuration for a given KRESOL handle (or the default handle if this argument is omitted).

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle for which information is required.
  Default: The first defined resolution handle.

OPTIONAL, INTENT(OUT) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC
  Number of complex spectral coefficients on this MPI task.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC2
  Number of real and imaginary spectral coefficients on this MPI task. Equal to 2 * KSPEC.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC2G
  Number of real and imaginary spectral coefficients across all MPI tasks.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC2MX
  The maximum value of KSPEC2 over all MPI tasks.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KNUMP
  Number of zonal wave numbers handled by this MPI task for the Legendre transform.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KGPTOT
  Number of grid columns on this MPI task.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KGPTOTG
  Total number of grid columns across all MPI tasks.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KGPTOTMX
  Maximum number of grid columns on any of the MPI tasks.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KGPTOTL(:,:)
  Number of grid columns one each PE (dimension N_REGIONS_NS:N_REGIONS_EW).
  TODO: check.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KMYMS(:)
  The zonal wavenumbers handled by this MPI task for the Legendre transform.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KASM0(0:)
  Address in a spectral array of (m, n=m).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KUMPP(:)
  TODO: check this. Number of wave numbers each wave set is responsible for
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPOSSP(:)
  Defines partitioning of global spectral fields among PEs
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRMS(:)
  Pointer to the first wave number of a given A-set
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KALLMS(:)
  Wave numbers for all wave-set concatenated together to give all wave numbers in wave-set order
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KDIM0G(0:)
  Defines partitioning of global spectral fields among PEs
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KFRSTLAT(:)
  First latitude of each a-set in grid-point space
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KLSTLAT(:)
  Last latitude of each a-set in grid-point space
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KFRSTLOFF
  Offset for first lat of own a-set in grid-point space
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRLAT(:)
  Pointer to the start of each latitude
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRFRSTLAT(:)
  Pointer to the first latitude of each a-set in NSTA and NONL arrays
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRLSTLAT(:)
  Pointer to the last latitude of each a-set in NSTA and NONL arrays
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRFLOFF
  Offset for pointer to the first latitude of own a-set NSTA and NONL arrays, i.e. nptrfrstlat (myseta)-1
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSTA(:,:)
  Position of first grid column for the latitudes on a processor. The information is available for all processors. The b-sets are distinguished by the last dimension of nsta(). The latitude band for each a-set is addressed by nptrfrstlat(jaset), nptrlstlat(jaset), and nptrfloff=nptrfrstlat(myseta) on this processors a-set. Each split latitude has two entries in nsta(,:) which necessitates the rather complex addressing of nsta(,:) and the overdimensioning of nsta by N_REGIONS_NS.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KONL(:,:)
  Number of grid columns for the latitudes on a processor. Similar to nsta() in data structure.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KULTPP(:)
  number of latitudes for which each a-set is calculating the FFTs.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRLS(:)
  pointer to first global latitude of each a-set for which it performs the Fourier calculations
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KNMENG(:)
  associated (with NLOENG) cut-off zonal wavenumber
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPRTRW
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KMYSETW
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KMYSETV
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KMY_REGION_NS
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KMY_REGION_EW
• LOGICAL, OPTIONAL, INTENT(OUT) :: LDSPLITLAT(:)
  TRUE if latitude is split in grid point space over two a-sets
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSMAX
  spectral truncation
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PLAPIN(-1:)
  Eigenvalues of the inverse Laplace operator
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KNVALUE(:)
  n value for each KSPEC2 spectral coeffient
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KDEF_RESOL
  number or resolutions defined
• LOGICAL, OPTIONAL, INTENT(OUT) :: LDLAM
  .T. if the corresponding resolution is LAM, .F. if it is global
• REAL(KIND=JPRD), OPTIONAL, INTENT(OUT) :: PMU(:)
  sin(Gaussian latitudes)
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGW(:)
  Gaussian weights
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PRPNM(:,:)
  Legendre polynomials
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KLEI3
  First dimension of Legendre polynomials
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPOLEGL
  Second dimension of Legendre polynomials
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPMS(0:)
  Address for legendre polynomial for given M (NSMAX)
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KDGLU(0:)
  Number of active points in an hemisphere for a given wavenumber "m"

DIR_TRANS

Signature

SUBROUTINE DIR_TRANS(PSPVOR, PSPDIV, PSPSCALAR, PSPSC3A, PSPSC3B, PSPSC2, LDLATLON, KPROMA, &
  &                  KVSETUV, KVSETSC, KRESOL, KVSETSC3A, KVSETSC3B, KVSETSC2, PGP, PGPUV, PGP3A, &
  &                  PGP3B, PGP2, LPGP_ON_GPU, LPSP_ON_GPU)

Purpose

This subroutine performs a direct spectral transform. DIR_TRANS supports two modes of passing arrays (which we call "call modes" below):

1. Pass in PGP, receive PSPVOR, PSPDIV, PSPSCALAR.
2. Pass in PGPUV, PGP3A, PGP3B, PGP2, receive PSPVOR, PSPDIV, PSPSC3A, PSPSC3B, PSPSC2.

Although call mode 1 is simpler, it can often entail having to create array copies in order to prepare the different elements of PGP. Hence, with call mode 2, the input and output arrays are categorized according to whether they are wind related, 3D scalar, or 2D scalar.

Note that PSPSC3A/PGP3A and PSPSC3B/PGP3B are essentially identical in type and size. There are cases where it is useful to have the ability to pass two sets of scalar fields to be transformed independently.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMA
  Blocking factor for grid point input.
  Default: D%NGPTOT
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETUV(:)
  Array which maps each vertical level of the output vorticity/divergence to its corresponding member of the V-set.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC(:)
  Array which maps each of the output scalar fields to its corresponding member of the V-set (call mode 1).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3A(:)
  Array which maps each vertical level of the output 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3B(:)
  Array which maps each vertical level of the output 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC2(:)
  Array which maps each output 2D scalar field to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDLATLON
  TODO: what is this?
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP(:,:,:)
  Array containing all grid point fields (call mode 1).
  Dimensions: (NPROMA, number of grid point fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. U wind
  2. V wind
  3. scalar fields
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGPUV(:,:,:,:)
  Array containing wind-related grid point fields (call mode 2).
  Dimensions: (NPROMA, vertical levels, number of wind fields, number of NPROMA blocks).
  DIR_TRANS only operates on U/V winds, not vorticity/divergence. Hence, the third dimension of PGPUV must be equal to 2 (one for U and one for V).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP3A(:,:,:,:)
  Array containing 3D scalar grid point fields, corresponding to PSPSC3A.
  Dimensions: (NPROMA, vertical levels, number of scalar fields, number of NPROMA blocks).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP3B(:,:,:,:)
  Array containing 3D scalar grid point fields, corresponding to PSPSC3B.
  Dimensions: (NPROMA, vertical levels, number of scalar fields, number of NPROMA blocks).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP2(:,:,:)
  Array containing 2D scalar grid point fields, corresponding to PSPSC2.
  Dimensions: (NPROMA, number of scalar fields, number of NPROMA blocks).
• LOGICAL, OPTIONAL, INTENT(IN) :: LPGP_ON_GPU
  Optional device-residency hint for PGP, PGPUV, PGP3A, PGP3B and PGP2. If present and true, the GPU path assumes the corresponding present array is already resident on device and skips the associated host/device synchronization. Ignored on the CPU path.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LPSP_ON_GPU
  Optional device-residency hint for PSPVOR, PSPDIV, PSPSCALAR, PSPSC3A, PSPSC3B, and PSPSC2. If present and true, the GPU path will not copy these arrays back to host after performing the transform. Ignored on the CPU path.
  Default: .FALSE.

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPVOR(:,:)
  Spectral space vorticity.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPDIV(:,:)
  Spectral space divergence.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSCALAR(:,:)
  Spectral space scalar fields (call mode 1).
  Dimensions: (total number of 2D scalar fields, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSC3A(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3A.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSC3B(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3B.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSC2(:,:)
  Spectral space 2D scalar fields (call mode 2) corresponding to PGP2.

INV_TRANS

Signature

SUBROUTINE INV_TRANS(PSPVOR, PSPDIV, PSPSCALAR, PSPSC3A, PSPSC3B, PSPSC2, FSPGL_PROC, LDSCDERS, &
  &                  LDVORGP, LDDIVGP, LDUVDER, LDLATLON, KPROMA, KVSETUV, KVSETSC, KRESOL, &
  &                  KVSETSC3A, KVSETSC3B, KVSETSC2, PGP, PGPUV, PGP3A, PGP3B, PGP2, LPGP_ON_GPU, &
  &                  LPSP_ON_GPU)

Purpose

This subroutine performs an inverse spectral transform. INV_TRANS supports two modes of passing arrays (which we call "call modes" below):

1. Pass in PSPVOR, PSPDIV, PSPSCALAR, receive PGP.
2. Pass in PSPVOR, PSPDIV, PSPSC3A, PSPSC3B, PSPSC2, receive PGPUV, PGP3A, PGP3B, PGP2

Although call mode 1 is simpler, it can often entail having to create array copies in order to subsequently operate on the different elements of PGP. Hence, with call mode 2, the output arrays are already categorized according to whether they are wind related, 3D scalar, or 2D scalar.

Note that PSPSC3A/PGP3A and PSPSC3B/PGP3B are essentially identical in type and size. There are cases where it is useful to have the ability to pass two sets of scalar fields to be transformed independently.

OPTIONAL, INTENT(IN) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPVOR(:,:)
  Spectral space vorticity.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPDIV(:,:)
  Spectral space divergence.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPSCALAR(:,:)
  Spectral space scalar fields (call mode 1).
  Dimensions: (total number of 2D scalar fields, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPSC3A(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3A.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPSC3B(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3B.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPSC2(:,:)
  Spectral space 2D scalar fields (call mode 2) corresponding to PGP2.
  Dimensions: (number of 2D scalar fields, spectral coefficients).
• LOGICAL, OPTIONAL, INTENT(IN) :: LDSCDERS
  Indicates if derivatives of scalar variables are required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDVORGP
  Indicates if grid point space vorticity is required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDDIVGP
  Indicates if grid point space divergence is required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDUVDER
  Indicates of East-West derivatives of U and V are required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDLATLON
  Indicates if regular latitude-longitude output is required.
  Default: .FALSE.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMA
  Required blocking factor for grid point output.
  Default: D%NGPTOT
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETUV(:)
  Array which maps each vertical level of the input vorticity/divergence to its corresponding member of the V-set.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC(:)
  Array which maps each of the input scalar fields to its corresponding member of the V-set (call mode 1).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3A(:)
  Array which maps each vertical level of the input 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3B(:)
  Array which maps each vertical level of the input 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC2(:)
  Array which maps each 2D scalar field to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
• LOGICAL, OPTIONAL, INTENT(IN) :: LPGP_ON_GPU
  Optional device-residency hint for PGP, PGPUV, PGP3A, PGP3B and PGP2. If present and true, the GPU path leaves the PGP arrays resident on device and skips the associated host/device synchronization. Ignored on the CPU path.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LPSP_ON_GPU
  Optional device-residency hint for PSPVOR, PSPDIV, PSPSCALAR, PSPSC3A, PSPSC3B, and PSPSC2. If present and true, the GPU path skips the copy of these arrays from host to device, instead assuming that they are already present. Ignored on the CPU path.
  Default: .FALSE.

OPTIONAL, EXTERNAL arguments

• OPTIONAL, EXTERNAL :: FSPGL_PROC
  External procedure to be executed in Fourier space before transposition.

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP(:,:,:)
  Array containing all grid point fields (call mode 1).
  Dimensions: (NPROMA, number of grid point fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. vorticity (if PSPVOR is present and LDVORGP)
  2. divergence (if PSPDIV is present and LDDIVGP)
  3. U wind (if PSPVOR and PSPDIV are present)
  4. V wind (if PSPVOR and PSPDIV are present)
  5. scalar fields (if PSPSCALAR is present)
  6. North-South derivative of scalar fields (if PSPSCALAR is present and LDSCDERS)
  7. East-West derivative of U wind (if PSPVOR and PSPDIV are present and LDUVDER)
  8. East-West derivative of V wind (if PSPVOR and PSPDIV are present and LDUVDER)
  9. East-West derivative of scalar fields (if PSPSCALAR is present and LDSCDERS)
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGPUV(:,:,:,:)
  Array containing grid point fields relating to wind (call mode 2).
  Dimensions: (NPROMA, vertical levels, number of wind-related fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. vorticity (if PSPVOR is present and LDVORGP)
  2. divergence (if PSPDIV is present and LDDIVGP)
  3. U wind (if PSPVOR and PSPDIV are present)
  4. V wind (if PSPVOR and PSPDIV are present)
  5. East-West derivative of U wind (if PSPVOR and PSPDIV are present and LDUVDER)
  6. East-West derivative of V wind (if PSPVOR and PSPDIV are present and LDUVDER)
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP3A(:,:,:,:)
  Array containing 3D scalar grid point fields corresponding to PSPSC3A.
  Dimensions: (NPROMA, vertical levels, number of 3D scalar fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. scalar fields
  2. North-South derivatives of scalar fields (if LDSCDERS)
  3. East-West derivatives of scalar fields (if LDSCDERS)
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP3B(:,:,:,:)
  Array containing 3D scalar grid point fields corresponding to PSPSC3B.
  Dimensions: (NPROMA, vertical levels, number of 3D scalar fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. scalar fields
  2. North-South derivatives of scalar fields (if LDSCDERS)
  3. East-West derivatives of scalar fields (if LDSCDERS)
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP2(:,:,:)
  Array containing 2D scalar grid point fields corresponding to PSPSC2.
  Dimensions: (NPROMA, number of 2D scalar fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. scalar fields
  2. North-South derivatives of scalar fields (if LDSCDERS)
  3. East-West derivatives of scalar fields (if LDSCDERS)

SPECNORM

Signature

SUBROUTINE SPECNORM(PNORM, PSPEC, KVSET, KMASTER, KRESOL, PMET)

Purpose

This subroutine computes the spectral norms of the fields in the given input array and returns the values to a specific MPI task.

OPTIONAL, INTENT(IN) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPEC(:,:)
  The spectral array to compute the norm of. This argument is optional because not all MPI tasks necessarily possess a field, depending on the contents of KVSET.
  Dimensions: (number of fields on this MPI task, spectral dimension)
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSET(:)
  Array specifying which MPI task each of the fields belongs to.
  Dimensions: (number of fields across all MPI tasks)
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KMASTER
  The MPI task for whom PNORM will contain values.
  Default: 1
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PMET(:)
  A multiplier applied in the total wavenumber direction as the norm is calculated.
  Dimensions: (0:R%NSMAX) (R%NSMAX is the same as KSMAX passed to SETUP_TRANS)
  Default: 1.0
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PNORM(:)
  An array containing the spectral norms of all input spectral fields. Note that all MPI tasks must pass this array - it is not optional. Only task KMASTER needs to actually allocate its array though.
  Dimensions: (number of fields across all MPI tasks)

GPNORM_TRANS

Signature

SUBROUTINE GPNORM_TRANS(PGP, KFIELDS, KPROMA, PAVE, PMIN, PMAX, LDAVE_ONLY, KRESOL, LPGP_ON_GPU)

Purpose

This subroutine calculates the global average (and optionally the global minimum and maximum) of the input fields in grid point space. The results are communicated to task 1 only.

INTENT(IN) arguments

• REAL(KIND=JPRB), INTENT(IN) :: PGP(:,:,:)
  Input grid point array, distributed across MPI tasks as usual.
  Dimensions: (NPROMA, number of fields, number of NPROMA blocks)
• INTEGER(KIND=JPIM), INTENT(IN) :: KFIELDS
  Number of input fields on which to compute statistics.
• INTEGER(KIND=JPIM), INTENT(IN) :: KPROMA
  Blocking factor for grid point input.
• LOGICAL, INTENT(IN) :: LDAVE_ONLY
  Specify that only the average should be calculated before the aggregation to task 1. In this case PMIN and PMAX should already contain the minimum and maximum values of each field for each MPI task's local region, and afterwards they will contain the global maximum and minimum (again, only on task 1).

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)
• LOGICAL, OPTIONAL, INTENT(IN) :: LPGP_ON_GPU
  When .TRUE., this argument indicates that input grid point data is already resident on device and no host->device update is needed.
  Default: .FALSE.

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PAVE(:)
  The global average of each field. Only task 1 will have data.
  Dimensions: (KFIELDS)

INTENT(INOUT) arguments

• REAL(KIND=JPRB), INTENT(INOUT) :: PMIN(:)
  The global minimum of each field. Only task 1 will have data.
  Dimensions: (KFIELDS)
• REAL(KIND=JPRB), INTENT(INOUT) :: PMAX(:)
  The global maximum of each field. Only task 1 will have data.
  Dimensions: (KFIELDS)

GPNORM_TRANSAD

Signature

SUBROUTINE GPNORM_TRANSAD(PGP, KFIELDS, KPROMA, PAVE, KRESOL)

Purpose

This subroutine is the "adjoint" version of GPNORM_TRANSTL.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KFIELDS
  Number of input fields on which to compute statistics.
• INTEGER(KIND=JPIM), INTENT(IN) :: KPROMA
  Blocking factor for grid point input.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)

INTENT(INOUT) arguments

• REAL(KIND=JPRB), INTENT(INOUT) :: PAVE(:)
  Input global average of each field. Only task 1 should have data. On output this will be zeroed.
  Dimensions: (KFIELDS)

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PGP(:,:,:)
  Output grid point array, distributed across MPI tasks as usual.
  Dimensions: (NPROMA, number of fields, number of NPROMA blocks)

GPNORM_TRANSTL

Signature

SUBROUTINE GPNORM_TRANSTL(PGP, KFIELDS, KPROMA, PAVE, KRESOL)

Purpose

This subroutine is the "tangent linear" version of GPNORM_TRANS. It is actually identical, but has a simpler interface as the PMIN and PMAX arguments are not used for tangent-linear applications.

INTENT(IN) arguments

• REAL(KIND=JPRB), INTENT(IN) :: PGP(:,:,:)
  Input grid point array, distributed across MPI tasks as usual.
  Dimensions: (NPROMA, number of fields, number of NPROMA blocks)
• INTEGER(KIND=JPIM), INTENT(IN) :: KFIELDS
  Number of input fields on which to compute statistics.
• INTEGER(KIND=JPIM), INTENT(IN) :: KPROMA
  Blocking factor for grid point input.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PAVE(:)
  The global average of each field. Only task 1 will have data.
  Dimensions: (KFIELDS)

DIST_GRID

Signature

SUBROUTINE DIST_GRID(PGPG, KPROMA, KFDISTG, KFROM, KRESOL, PGP, KSORT)

Purpose

The subroutine distributes one or more global grid point fields resident across one or more MPI tasks (each field is entirely resident on a single MPI task without decomposition) among all other tasks, decomposing them along the way. It is the opposite of GATH_GRID.

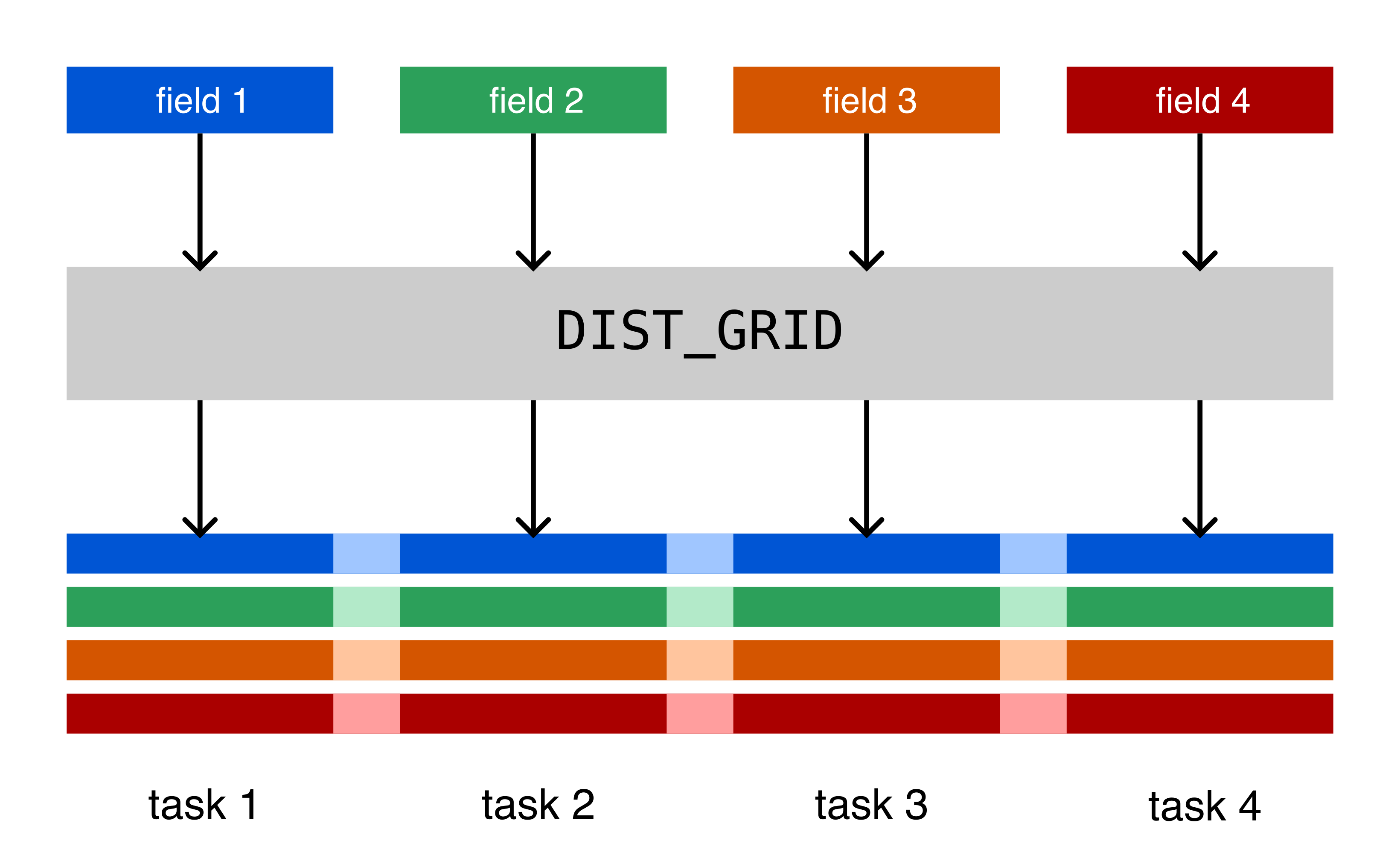

The figure below illustrates an example in which four fields are distributed equally across four MPI tasks. Note that at the end, each task receives part of all four input fields. Note also that the NPROMA-based blocking is introduced at the end of DIST_GRID.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KFDISTG
  The number of fields to be distributed.
• INTEGER(KIND=JPIM), INTENT(IN) :: KFROM(:)
  Array which, for each field to be distributed, which MPI task will be sending the field.
  Dimensions: (KFDISTG)

OPTIONAL, INTENT(IN) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGPG(:,:)
  Array containing fields to be distributed.
  Dimensions: (number of global grid points, number of fields on this MPI task).
  Note that this is optional, because some tasks may only receive fields (and so they wouldn't have any fields to offer through PGPG).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMA
  "Blocking factor" used for grid point output.
  Default: D%NGPTOT
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KSORT(:)
  Array allowing to rearrange fields in the output array. For each element, specify which element you want the field to end up in.
  Dimensions: (second dimension of PGP)
  Default: no sorting

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PGP(:,:,:)
  Array containing grid point output.
  Dimensions: (NPROMA, number of fields, number of NPROMA blocks).

GATH_GRID

Signature

SUBROUTINE GATH_GRID(PGPG, KPROMA, KFGATHG, KTO, KRESOL, PGP)

Purpose

The subroutine gathers one or more fields distributed across one or more MPI tasks and sends them to a particular MPI task. It is the opposite of DIST_GRID.

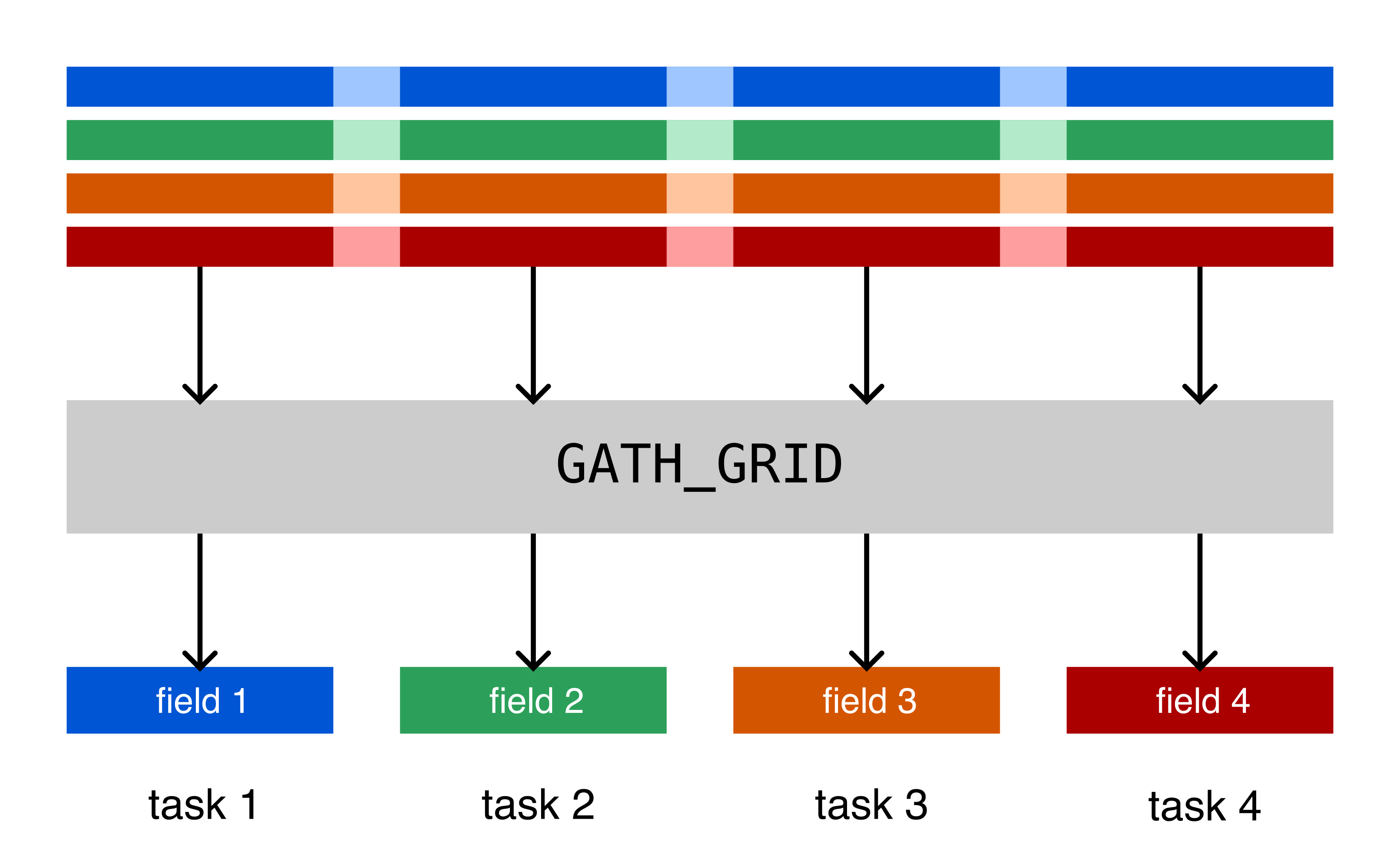

The figure below illustrates an example in which four fields which are distributed equally across four MPI tasks are gathered so that each task possesses one field in its entirety. The NPROMA blocking is removed along the way so that at the end, each field only has a single horizontal dimension

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KFGATHG
  The number of fields to be gathered.
• INTEGER(KIND=JPIM), INTENT(IN) :: KTO(:)
  Array which, for each field to be gathered, which MPI task will be receiving the field.
  Dimensions: (KFGATHG)
• REAL(KIND=JPRB), INTENT(IN) :: PGP(:,:,:)
  Array containing grid point output.
  Dimensions: (NPROMA, number of fields, number of NPROMA blocks).

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMA
  "Blocking factor" used for grid point output.
  Default: D%NGPTOT
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGPG(:,:)
  Array containing gathered fields.
  Dimensions: (number of global grid points, number of fields on this MPI task).
  Note that this is optional, because not all tasks may be receiving fields.

DIST_SPEC

Signature

SUBROUTINE DIST_SPEC(PSPECG, KFDISTG, KFROM, KVSET, KRESOL, PSPEC, LDIM1_IS_FLD, KSMAX, KSORT)

Purpose

This subroutine distributes a global spectral array among MPI tasks according to the specified distribution parameters. Fields are partitioned in the horizontal dimension (i.e. the dimension of spectral coefficients) and in the "fields" dimension, according to KVSET. This subroutine is the opposite of GATH_SPEC.

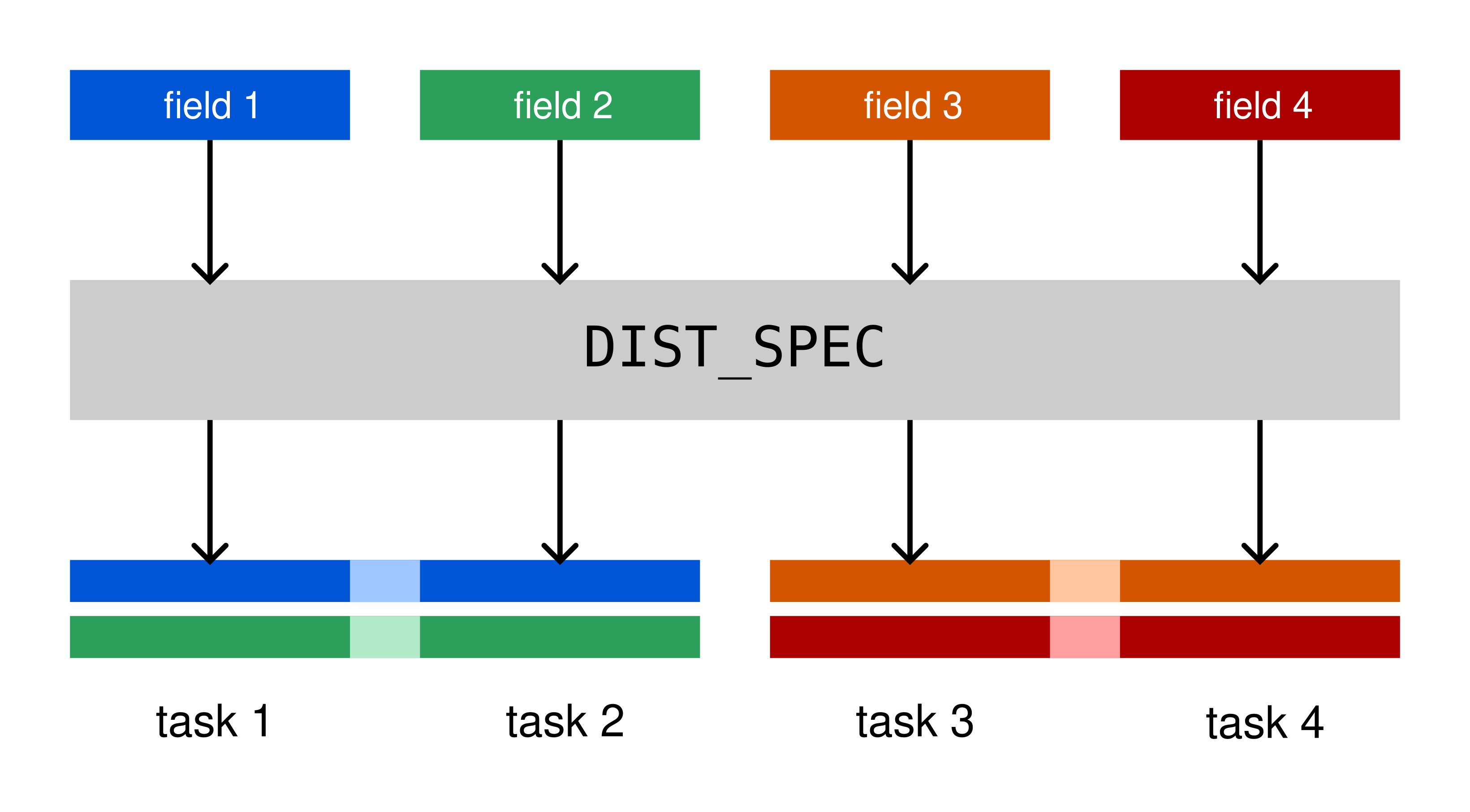

The figure below illustrates an example in which four fields are distributed equally across four MPI tasks. In this case, NPRTRV = 2 which means that each field is split among two MPI tasks, as shown. This is in contrast to DIST_GRID, which distributes fields such that each MPI task receives a slice of every field.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KFDISTG
  The global number of fields to be distributed.
• INTEGER(KIND=JPIM), INTENT(IN) :: KFROM(:)
  Array which, for each field to be distributed, which MPI task is responsible for distributing the field.
  Dimensions: (KFDISTG).

OPTIONAL, INTENT(IN) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPECG(:,:)
  Global spectral array to be distributed.
  Dimensions: (number of fields, number of spectral coefficients) (flipped if LDIM1_IS_FLD is
  .FALSE.). Note that this is optional, because some tasks may only receive fields (and so they wouldn't have any fields to offer through PSPECG).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSET(:)
  Array which, for each field to be distributed, which "V-set" the field belongs to.
  Dimensions: (KFDISTG).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)
• LOGICAL, OPTIONAL, INTENT(IN) :: LDIM1_IS_FLD
  If .TRUE., the first dimension of PSPECG and PSPEC corresponds to fields and the second dimension corresponds to spectral coefficients. If .FALSE., the first dimension corresponds to spectral coefficients and the second dimension corresponds to fields.
  Default: .TRUE.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KSMAX
  Maximum total wavenumber of the spectral transform. If not provided, it is inferred from the resolution handle KRESOL.
  Default: inferred from KRESOL
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KSORT(:)
  Array which, for each field to be distributed, specifies the sorting order of the spectral coefficients.
  Dimensions: (KFDISTG).
  Default: no sorting

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPEC(:,:)
  Local spectral array on each MPI task after distribution.
  Dimensions: (number of fields on this MPI task, number of spectral coefficients on this MPI
  task).

GATH_SPEC

Signature

SUBROUTINE GATH_SPEC(PSPECG, KFGATHG, KTO, KVSET, KRESOL, PSPEC, LDIM1_IS_FLD, KSMAX, LDZA0IP)

Purpose

This subroutine gathers spectral fields decomposed among MPI tasks according to the specified distribution parameters. This subroutine is the opposite of DIST_SPEC.

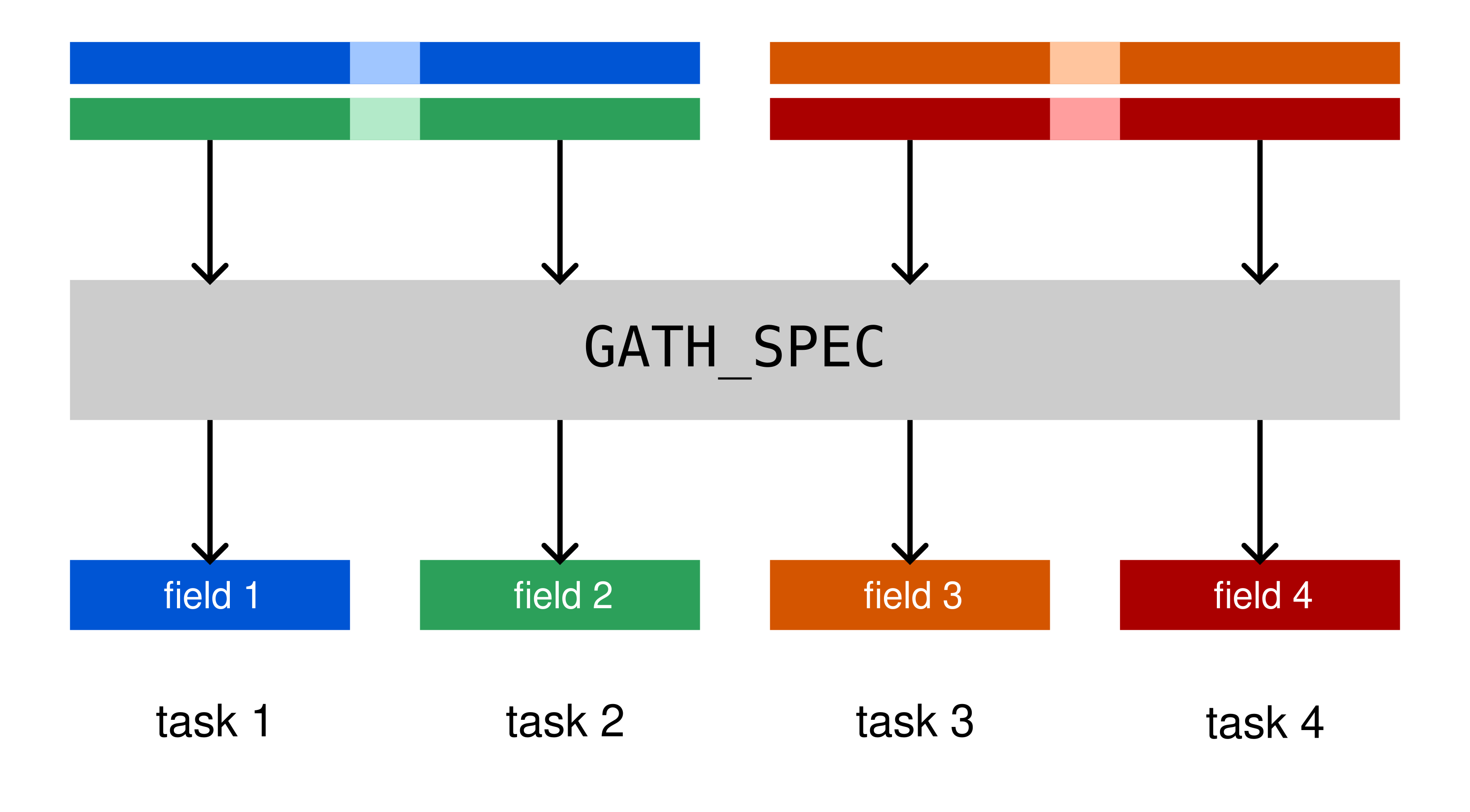

The figure below illustrates an example in which four fields distributed across four MPI tasks are collected so that each task has one global spectral field. In this case, NPRTRV = 2 which means that each field is split among two MPI tasks to begin with, as shown.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KFGATHG
  The global number of fields to be gathered.
• INTEGER(KIND=JPIM), INTENT(IN) :: KTO(:)
  Array which, for each field to be gathered, which MPI task will receive the field.
  Dimensions: (KFGATHG).

OPTIONAL, INTENT(IN) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PSPEC(:,:)
  Array containing this MPI task's portion of the spectral fields to be gathered.
  Dimensions: (number of fields, number of spectral coefficients) (flipped if LDIM1_IS_FLD is
  .FALSE.). Note that this is optional, because some tasks may not actually own any spectral fields (and so they wouldn't have any fields to offer through PSPEC).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSET(:)
  Array which, for each field to be distributed, which "V-set" the field belongs to.
  Dimensions: (KFGATHG).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)
• LOGICAL, OPTIONAL, INTENT(IN) :: LDIM1_IS_FLD
  If .TRUE., the first dimension of PSPECG and PSPEC corresponds to fields and the second dimension corresponds to spectral coefficients. If .FALSE., the first dimension corresponds to spectral coefficients and the second dimension corresponds to fields.
  Default: .TRUE.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KSMAX
  Maximum total wavenumber of the spectral transform. If not provided, it is inferred from the resolution handle KRESOL.
  Default: inferred from KRESOL
• LOGICAL, OPTIONAL, INTENT(IN) :: LDZA0IP
  IF .TRUE., the imaginary part of the coefficients corresponding to zonal wavenumber 0 are zeroed.
  Default: .TRUE.

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPECG(:,:)
  Array containing gathered fields.
  Dimensions: (number of global spectral coefficients, number of fields on this MPI task).
  Note that this is optional, because not all tasks may be receiving fields.

GET_CURRENT

Signature

SUBROUTINE GET_CURRENT(KRESOL, LDLAM)

Purpose

This subroutine allows one to retrieve the current resolution handle, NCUR_RESOL, and the LAM parameter, LDLAM, which indicates if the local area version of ecTrans is being used or not.

OPTIONAL, INTENT(OUT) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KRESOL
  The current default resolution handle.
• LOGICAL, OPTIONAL, INTENT(OUT) :: LDLAM
  Whether the local area version of ecTrans is being used or not.

INI_SPEC_DIST

Signature

SUBROUTINE INI_SPEC_DIST(KSMAX, KTMAX, KPRTRW, KMYSETW, KASM0, KSPOLEGL, KPROCM, KUMPP, KSPEC, &
  &                      KSPEC2, KSPEC2MX, KPOSSP, KMYMS, KPTRMS, KALLMS)

Purpose

This subroutine initializes the arrays controlling spectral wave distribution.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KSMAX
  Spectral truncation required.
• INTEGER(KIND=JPIM), INTENT(IN) :: KTMAX
  Overtruncation for KSMAX.
• INTEGER(KIND=JPIM), INTENT(IN) :: KPRTRW
  Number of processors in A-direction.
• INTEGER(KIND=JPIM), INTENT(IN) :: KMYSETW
  A-set for present processor.

OPTIONAL, INTENT(OUT) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KASM0(0:KSMAX)
  Offsets for spectral waves.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPOLEGL
  Local version of NSPOLEG.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPROCM(0:KSMAX)
  Where a certain spectral wave belongs.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KUMPP(KPRTRW)
  Number of spectral waves on this task.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC
  Local version of NSPEC.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC2
  Local version of NSPEC2.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KSPEC2MX
  Maximum KSPEC2 across tasks.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPOSSP(KPRTRW+1)
  Global spectral fields partitioning.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KMYMS(KSMAX+1)
  This task's spectral zonal wavenumbers.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KPTRMS(KPRTRW)
  Pointer to the first wave number of a given A-set.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(OUT) :: KALLMS(KSMAX+1)
  Wave numbers for all wave-set concatenated together to give all wave numbers in wave-set order.

TRANS_PNM

Signature

SUBROUTINE TRANS_PNM(KRESOL, KM, PRPNM, LDTRANSPOSE, LDCHEAP)

Purpose

This subroutine computes the Legendre polynomials for a given wavenumber.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KM
  The zonal wavenumber to compute the polynomials for.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
  Default: 1 (i.e. first resolution handle)
• LOGICAL, OPTIONAL, INTENT(IN) :: LDTRANSPOSE
  Whether to transpose the output array (see dimensions of PRPNM below).
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDCHEAP
  Whether to use "cheap" algorithm to compute the polynomials (which are albeit less accurate).
  Default: .FALSE.

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PRPNM(:,:)
  The computed Legendre polynomials. The dimensions depend on the value of LDTRANSPOSE. Note that this must be already allocated. See SETUP_DIMS_MOD for the defininition of R%NLEI3.
  Dimensions: (R%NTMAX-KM+3, R%NLEI3) if LDTRANSPOSE is .TRUE., else (R%NLEI3, R%NTMAX-KM+3)

VORDIV_TO_UV

Signature

SUBROUTINE VORDIV_TO_UV(PSPVOR, PSPDIV, PSPU, PSPV, KSMAX, KVSETUV)

Purpose

This subroutine converts spectral space vorticity and divergence to spectral space u and v wind components.

Note that this is a "special" subroutine: it can be called in isolation without initialisation by SETUP_TRANS0 and SETUP_TRANS. This is why it is necessary to pass in KSMAX explicitly.

INTENT(IN) arguments

• REAL(KIND=JPRB), INTENT(IN) :: PSPVOR(:,:)
  Spectral space vorticity.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), INTENT(IN) :: PSPDIV(:,:)
  Spectral space divergence.
  Dimensions: (vertical levels, spectral coefficients).
• INTEGER(KIND=JPIM), INTENT(IN) :: KSMAX
  Spectral truncation.

INTENT(OUT) arguments

• REAL(KIND=JPRB), INTENT(OUT) :: PSPU(:,:)
  Spectral space U (zonal) wind.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), INTENT(OUT) :: PSPV(:,:)
  Spectral space V (meridional) wind.
  Dimensions: (vertical levels, spectral coefficients).

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETUV(:)
  Array which maps each vertical level of the input vorticity/divergence to its corresponding member of the V-set.

DIR_TRANSAD

Signature

SUBROUTINE DIR_TRANSAD(PSPVOR, PSPDIV, PSPSCALAR, PSPSC3A, PSPSC3B, PSPSC2, KPROMA, KVSETUV, &
  &                    KVSETSC, KRESOL, KVSETSC3A, KVSETSC3B, KVSETSC2, PGP, PGPUV, PGP3A, PGP3B, &
  &                    PGP2)

Purpose

This is the adjoint version of the subroutine for performing a direct spectral transform. Like DIR_TRANS, DIR_TRANSAD supports two modes of passing arrays (which we call "call modes" below):

1. Pass in PGP, receive PSPVOR, PSPDIV, PSPSCALAR.
2. Pass in PGPUV, PGP3A, PGP3B, PGP2, receive PSPVOR, PSPDIV, PSPSC3A, PSPSC3B, PSPSC2.

Although call mode 1 is simpler, it can often entail having to create array copies in order to prepare the different elements of PGP. Hence, with call mode 2, the input and output arrays are categorized according to whether they are wind related, 3D scalar, or 2D scalar.

Note that PSPSC3A/PGP3A and PSPSC3B/PGP3B are essentially identical in type and size. There are cases where it is useful to have the ability to pass two sets of scalar fields to be transformed independently.

OPTIONAL, INTENT(IN) arguments

• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMA
  Required blocking factor for grid point output.
  Default: D%NGPTOT
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETUV(:)
  Array which maps each vertical level of the output vorticity/divergence to its corresponding member of the V-set.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC(:)
  Array which maps each of the output scalar fields to its corresponding member of the V-set (call mode 1).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3A(:)
  Array which maps each vertical level of the output 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3B(:)
  Array which maps each vertical level of the output 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC2(:)
  Array which maps each output 2D scalar field to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP(:,:,:)
  Array containing all grid point fields (call mode 1).
  Dimensions: (NPROMA, number of grid point fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. U wind
  2. V wind
  3. scalar fields
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGPUV(:,:,:,:)
  Array containing wind-related grid point fields (call mode 2).
  Dimensions: (NPROMA, vertical levels, number of wind fields, number of NPROMA blocks).
  DIR_TRANS only operates on U/V winds, not vorticity/divergence. Hence, the third dimension of PGPUV must be equal to 2 (one for U and one for V).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP3A(:,:,:,:)
  Array containing 3D scalar grid point fields, corresponding to PSPSC3A.
  Dimensions: (NPROMA, vertical levels, number of scalar fields, number of NPROMA blocks).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP3B(:,:,:,:)
  Array containing 3D scalar grid point fields, corresponding to PSPSC3B.
  Dimensions: (NPROMA, vertical levels, number of scalar fields, number of NPROMA blocks).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PGP2(:,:,:)
  Array containing 2D scalar grid point fields, corresponding to PSPSC2.
  Dimensions: (NPROMA, number of scalar fields, number of NPROMA blocks).

OPTIONAL, INTENT(INOUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(INOUT) :: PSPVOR(:,:)
  Spectral space vorticity.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(INOUT) :: PSPDIV(:,:)
  Spectral space divergence.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(INOUT) :: PSPSCALAR(:,:)
  Spectral space scalar fields (call mode 1).
  Dimensions: (total number of 2D scalar fields, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(INOUT) :: PSPSC3A(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3A.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(INOUT) :: PSPSC3B(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3B.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(INOUT) :: PSPSC2(:,:)
  Spectral space 2D scalar fields (call mode 2) corresponding to PGP2.

INV_TRANSAD

Signature

SUBROUTINE INV_TRANSAD(PSPVOR, PSPDIV, PSPSCALAR, PSPSC3A, PSPSC3B, PSPSC2, FSPGL_PROC, LDSCDERS, &
  &                    LDVORGP, LDDIVGP, LDUVDER, KPROMA, KVSETUV, KVSETSC, KRESOL, KVSETSC3A, &
  &                    KVSETSC3B, KVSETSC2, PGP, PGPUV, PGP3A, PGP3B, PGP2)

Purpose

This is the adjoint version of the subroutine for performing an inverse spectral transform. Like INV_TRANS, INV_TRANSAD supports two modes of passing arrays (which we call "call modes" below):

1. Pass in PSPVOR, PSPDIV, PSPSCALAR, receive PGP.
2. Pass in PSPVOR, PSPDIV, PSPSC3A, PSPSC3B, PSPSC2, receive PGPUV, PGP3A, PGP3B, PGP2

Although call mode 1 is simpler, it can often entail having to create array copies in order to subsequently operate on the different elements of PGP. Hence, with call mode 2, the output arrays are already categorized according to whether they are wind related, 3D scalar, or 2D scalar.

Note that PSPSC3A/PGP3A and PSPSC3B/PGP3B are essentially identical in type and size. There are cases where it is useful to have the ability to pass two sets of scalar fields to be transformed independently.

OPTIONAL, INTENT(IN) arguments

• LOGICAL, OPTIONAL, INTENT(IN) :: LDSCDERS
  Indicates if derivatives of scalar variables are required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDVORGP
  Indicates if grid point space vorticity is required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDDIVGP
  Indicates if grid point space divergence is required.
  Default: .FALSE.
• LOGICAL, OPTIONAL, INTENT(IN) :: LDUVDER
  Indicates of East-West derivatives of U and V are required.
  Default: .FALSE.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KPROMA
  Required blocking factor for grid point output.
  Default: D%NGPTOT
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETUV(:)
  Array which maps each vertical level of the input vorticity/divergence to its corresponding member of the V-set.
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC(:)
  Array which maps each of the input scalar fields to its corresponding member of the V-set (call mode 1).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3A(:)
  Array which maps each vertical level of the input 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC3B(:)
  Array which maps each vertical level of the input 3D scalar fields to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KVSETSC2(:)
  Array which maps each 2D scalar field to its corresponding member of the V-set (call mode 2).
• INTEGER(KIND=JPIM), OPTIONAL, INTENT(IN) :: KRESOL
  Resolution handle returned by original call to SETUP_TRANS.
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP(:,:,:)
  Array containing all grid point fields (call mode 1).
  Dimensions: (NPROMA, number of grid point fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. vorticity (if PSPVOR is present and LDVORGP)
  2. divergence (if PSPDIV is present and LDDIVGP)
  3. U wind (if PSPVOR and PSPDIV are present)
  4. V wind (if PSPVOR and PSPDIV are present)
  5. scalar fields (if PSPSCALAR is present)
  6. North-South derivative of scalar fields (if PSPSCALAR is present and LDSCDERS)
  7. East-West derivative of U wind (if PSPVOR and PSPDIV are present and LDUVDER)
  8. East-West derivative of V wind (if PSPVOR and PSPDIV are present and LDUVDER)
  9. East-West derivative of scalar fields (if PSPSCALAR is present and LDSCDERS)
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGPUV(:,:,:,:)
  Array containing grid point fields relating to wind (call mode 2).
  Dimensions: (NPROMA, vertical levels, number of wind-related fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. vorticity (if PSPVOR is present and LDVORGP)
  2. divergence (if PSPDIV is present and LDDIVGP)
  3. U wind (if PSPVOR and PSPDIV are present)
  4. V wind (if PSPVOR and PSPDIV are present)
  5. East-West derivative of U wind (if PSPVOR and PSPDIV are present and LDUVDER)
  6. East-West derivative of V wind (if PSPVOR and PSPDIV are present and LDUVDER)
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP3A(:,:,:,:)
  Array containing 3D scalar grid point fields corresponding to PSPSC3A.
  Dimensions: (NPROMA, vertical levels, number of 3D scalar fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. scalar fields
  2. North-South derivatives of scalar fields (if LDSCDERS)
  3. East-West derivatives of scalar fields (if LDSCDERS)
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP3B(:,:,:,:)
  Array containing 3D scalar grid point fields corresponding to PSPSC3B.
  Dimensions: (NPROMA, vertical levels, number of 3D scalar fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. scalar fields
  2. North-South derivatives of scalar fields (if LDSCDERS)
  3. East-West derivatives of scalar fields (if LDSCDERS)
• REAL(KIND=JPRB), OPTIONAL, INTENT(IN) :: PGP2(:,:,:)
  Array containing 2D scalar grid point fields corresponding to PSPSC2.
  Dimensions: (NPROMA, number of 2D scalar fields, number of NPROMA blocks).
  The ordering of grid point fields in this array is as follows:
  1. scalar fields
  2. North-South derivatives of scalar fields (if LDSCDERS)
  3. East-West derivatives of scalar fields (if LDSCDERS)

OPTIONAL, EXTERNAL arguments

• OPTIONAL, EXTERNAL :: FSPGL_PROC
  External procedure to be executed in Fourier space before transposition.

OPTIONAL, INTENT(OUT) arguments

• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPVOR(:,:)
  Spectral space vorticity.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPDIV(:,:)
  Spectral space divergence.
  Dimensions: (vertical levels, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSCALAR(:,:)
  Spectral space scalar fields (call mode 1).
  Dimensions: (total number of 2D scalar fields, spectral coefficients).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSC3A(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3A.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSC3B(:,:,:)
  Spectral space 3D scalar fields (call mode 2) corresponding to PGP3B.
  Dimensions: (vertical levels, spectral coefficients, number of 3D scalar fields).
• REAL(KIND=JPRB), OPTIONAL, INTENT(OUT) :: PSPSC2(:,:)
  Spectral space 2D scalar fields (call mode 2) corresponding to PGP2.
  Dimensions: (number of 2D scalar fields, spectral coefficients).

TRANS_RELEASE

Signature

SUBROUTINE TRANS_RELEASE(KRESOL)

Purpose

This subroutine releases (i.e. deallocates and nullifies) all arrays related to the given resolution tag KRESOL.

INTENT(IN) arguments

• INTEGER(KIND=JPIM), INTENT(IN) :: KRESOL
  The handle for the resolution you want to release.

TRANS_END

Signature

SUBROUTINE TRANS_END(CDMODE)

Purpose

This subroutine terminates the transform package by releasing (i.e. deallocating and nullifying) all allocated arrays.

OPTIONAL, INTENT(IN) arguments

• CHARACTER*5, OPTIONAL, INTENT(IN) :: CDMODE
  A string parameter indicating which mode to finalise with. Either 'FINAL' to finalise everything or 'INTER' just to deallocate N_REGIONS and NPRCIDS.
  Default: 'FINAL'
